BlackTrax Dyno tuning April 8th, 2010

260 hp, 264 lb-ft of torque on the DynaPack dyno at BlackTrax Performance in Milpitas, CA.

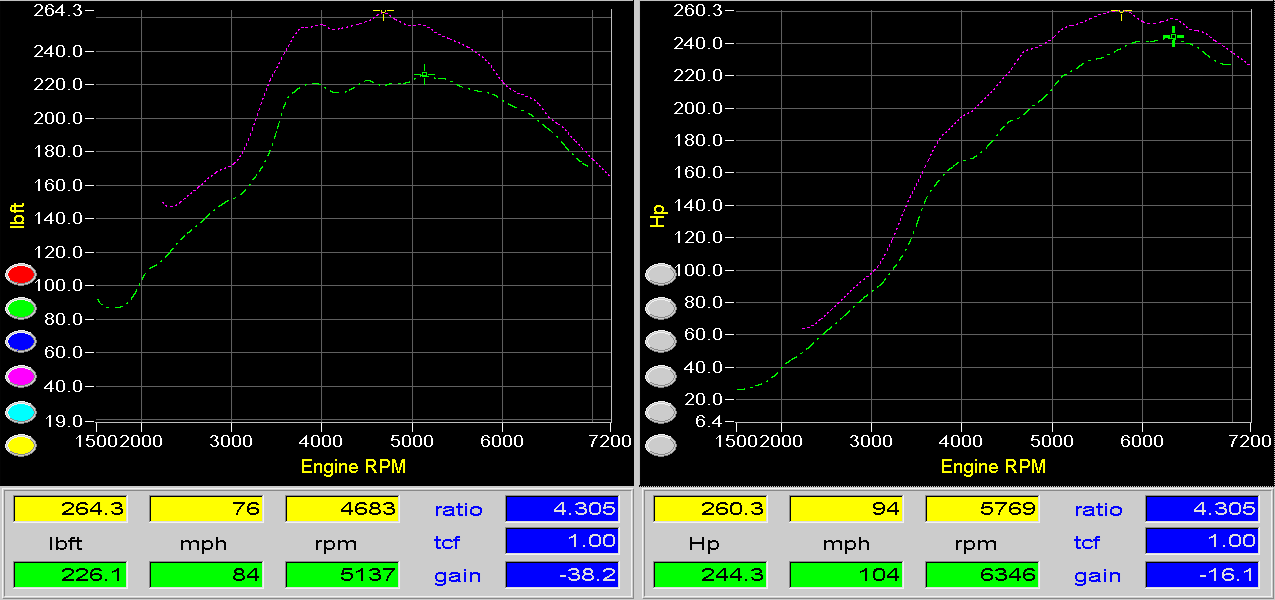

Comparison of 15psi run from April vs 12 psi from December:

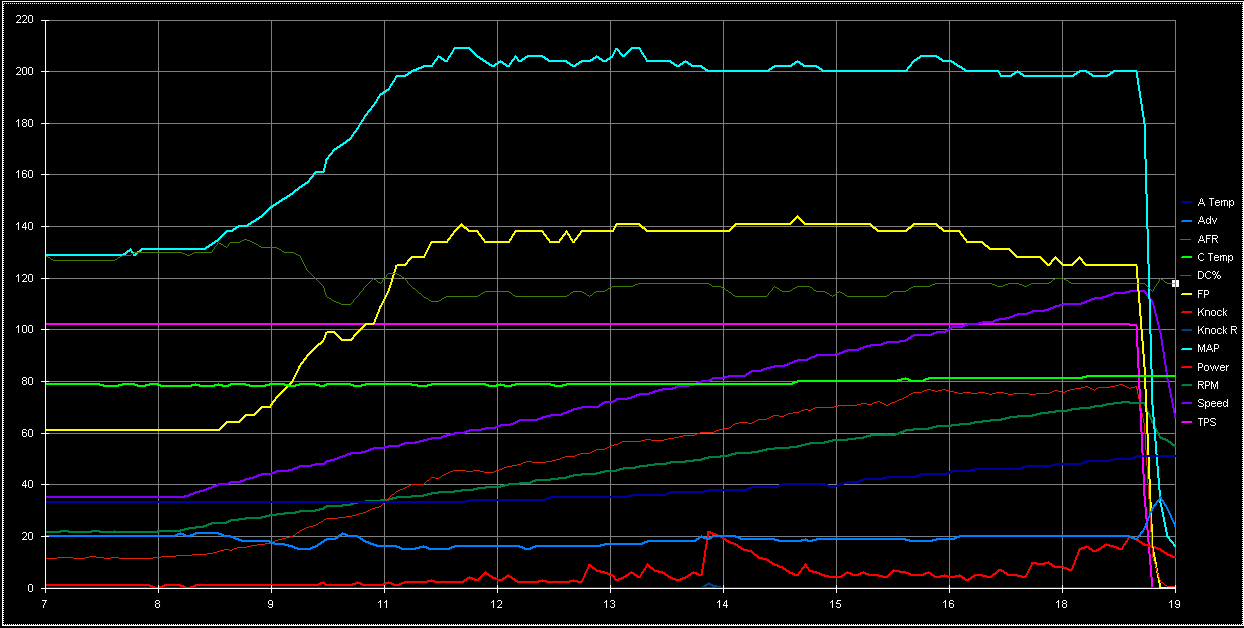

Hydra graph:

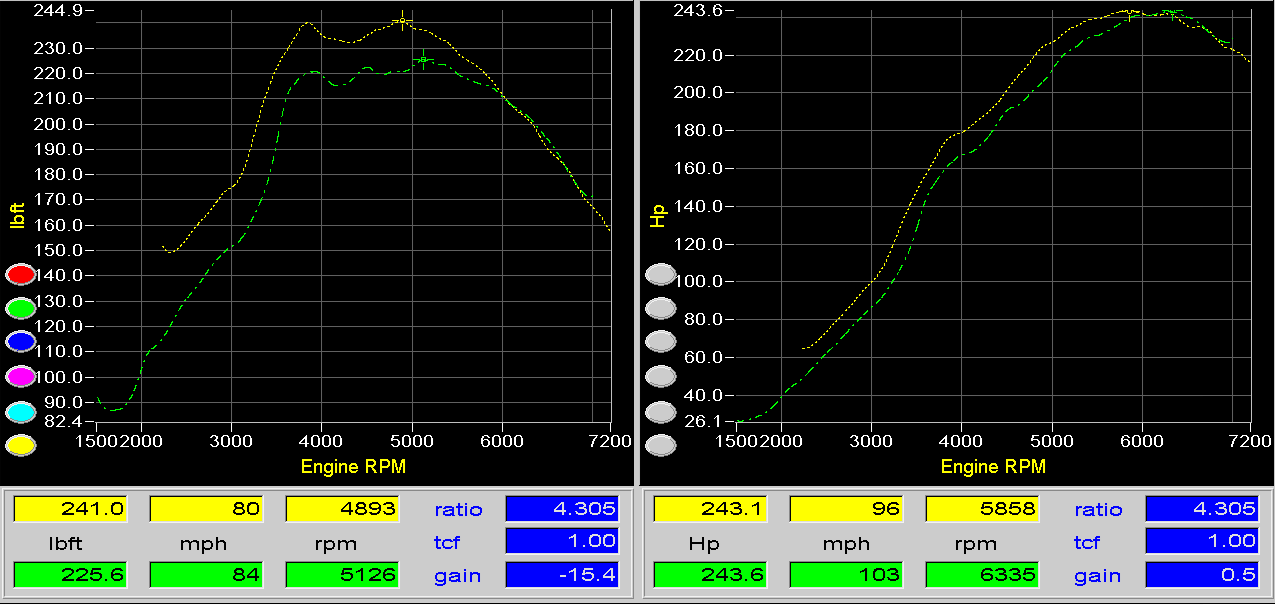

Comparison of 12psi run from April vs 12 psi from December:

BlackTrax Dyno tuning December 30th 2009

244 hp, 226 lb-ft of torque on the DynaPack dyno at BlackTrax Performance in Milpitas, CA.

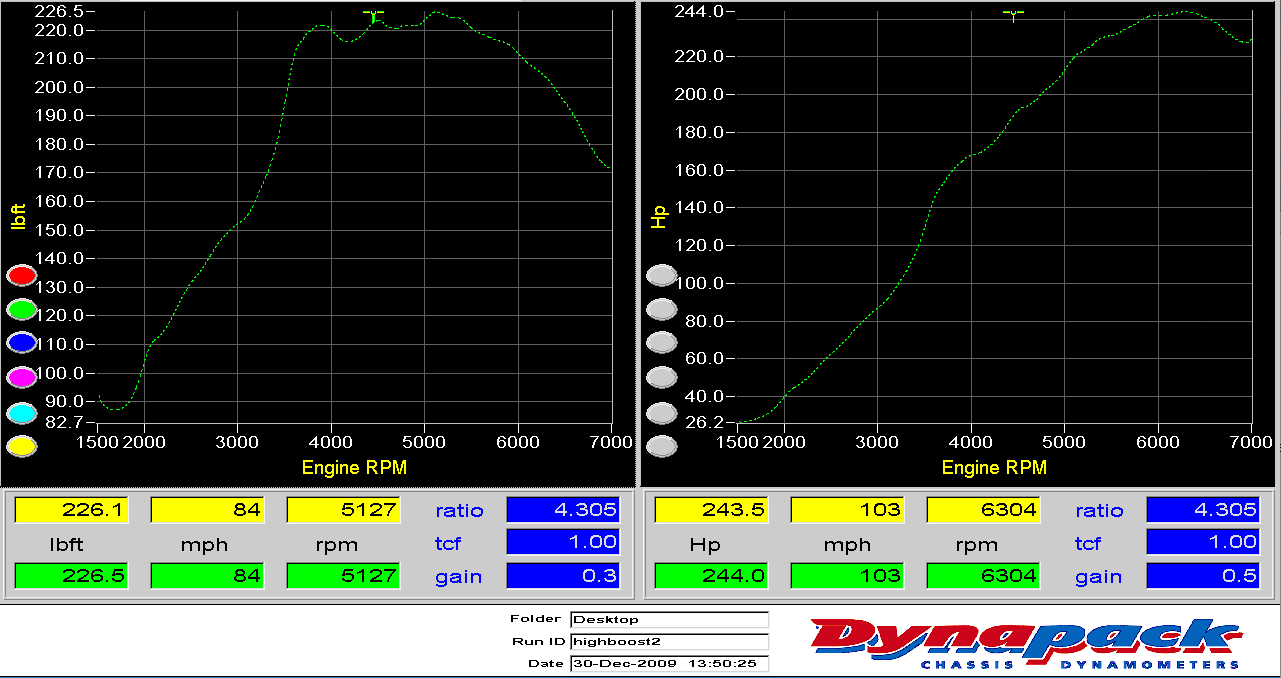

MBT run:

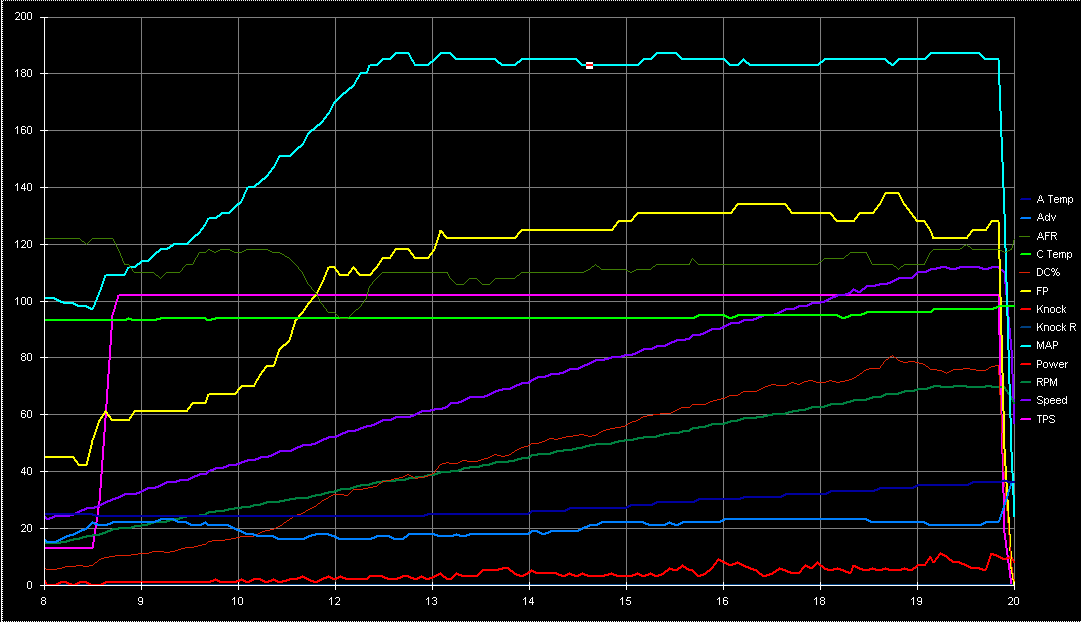

DLL log of this run:

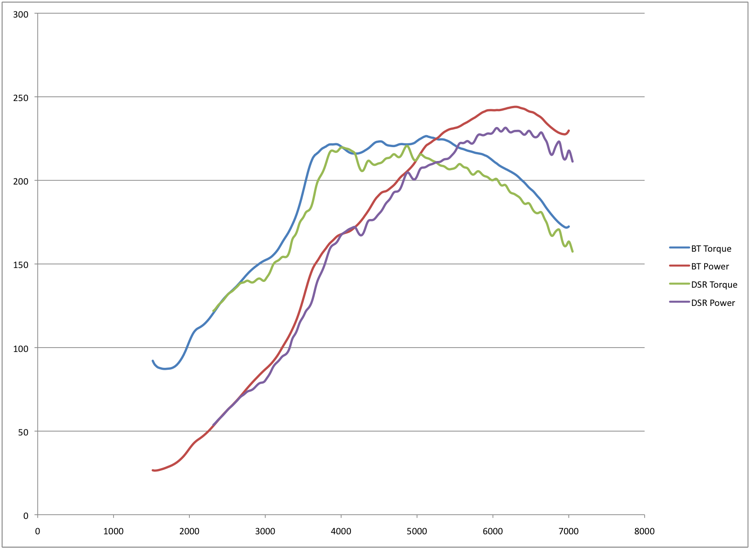

Comparison of this run vs old hardware at DSR. Note that DSR numbers are done with a dynojet (inertial dyno) and BT with a dynapack (load-holding dyno), so the numbers are not directly comparable. Theoretically the shapes ought to be, though.

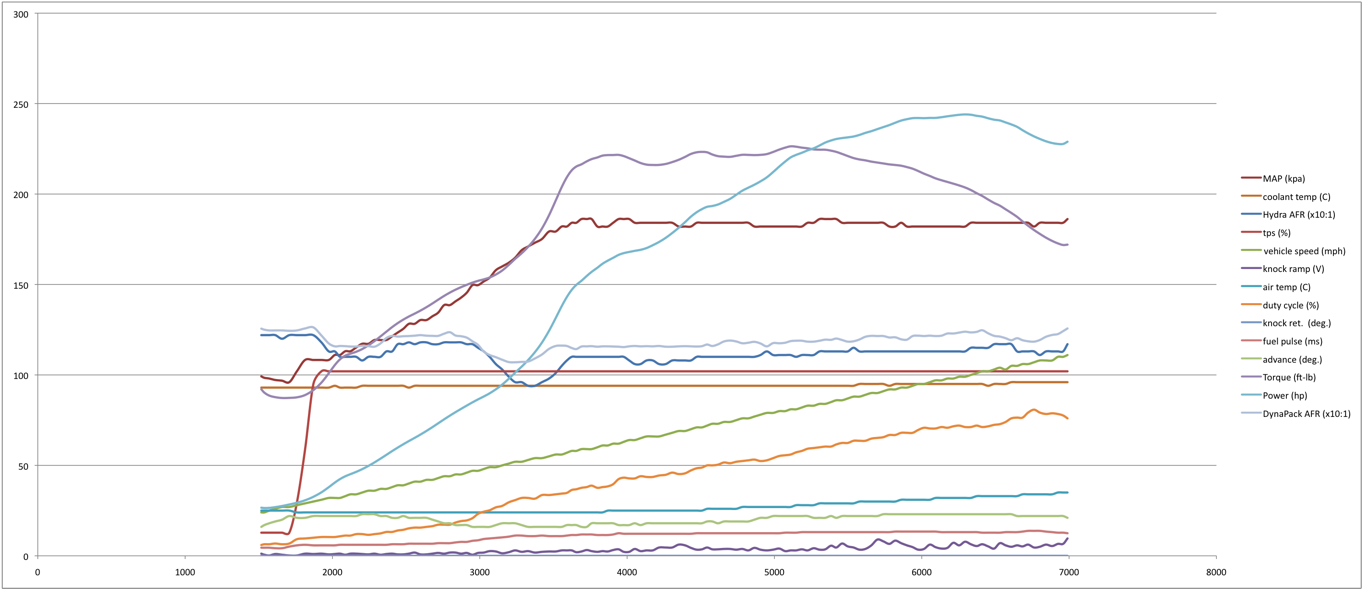

Merged plots from DLL and the DynaPack.

Ian McCloghrie
